Eurosmart Cosmopolitan E Bluetooth Infra-red electronic thermostatic basin mixer, wall mounted

Product Number
36414000
EAN
4005176320583
Colour
chrome
Rating

Product Description

  • with infrared sensor and Bluetooth module for bi-directional communication for monitoring, configuration and service purpose
  • with transformer 100-240 V AC, 50-60 Hz, 6.75 V DC
  • GROHE StarLight finish
  • GROHE CoolTouch
  • GROHE EcoJoy technology for less water and perfect flow
  • GROHE SafeStop safety button at 38°C
  • swivel cast spout 219 mm
  • with swivel stop at 130° or fixed
  • projection 287 mm
  • laminar mousseur 9 l/min
  • S-unions
  • escutcheon covers for S unions
  • non-return valve
  • dirt strainers
  • power connection cable 3.0 m
  • for use with connection set
  • 39 383 000
  • with Bluetooth 4.0* for wireless data communication
  • for Apple** and Android devices
  • Bluetooth range (max. 10 m) varies depending on used
    materials and walls between transmitter and receiver
  • monitoring
  • password protected products
  • app detects all Bluetooth products in range
  • auto flush cycles and timing last auto flush
  • usage per day / 30 days
  • thermal disinfection cycles and timings last disinfection
  • configuration
  • detection range and shut off delay
  • auto flush
  • thermal disinfection
  • cleaning mode
  • 2 on/off timers
  • identification by name
  • service
  • send and save 3 profiles
  • reset functions
  • hard and software version
  • CE approved
  • noise classification I in accordance with DIN 4109
  • type of protection faucet IP 59K
  •
  • Mobile devices and GROHE IR Remote App*** are not included in delivery and have to be ordered separately via an authorised Apple store/store/iTunes or Google Play store.
  •
  • * The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Grohe AG is under license. Other trademarks and trade names are those of their respective owners.
  •
  • ** Apple, the Apple logo, iPod, iPod Touch, iPhone and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. Apple is not responsible for the function of this device or its compliance with safety and regulatory standards.
  •
  • *** Available for free via iTunes app or Google Play store.

Technical Information

CAD Data

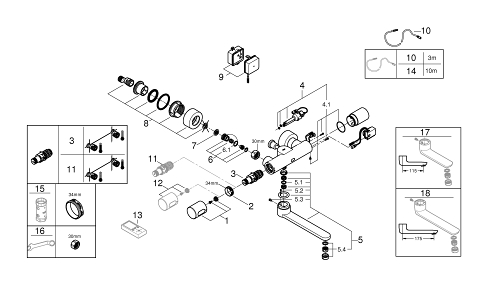

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Handle 47803000
2 Fitting ring 47743000
3 Thermostatic compact cartridge 1/2" 47439000
4 Solenoid valve 42424000
4.1 Set of screws 42422000
5 Spout 42423000
5.1 Sealing washer Ø 13.5 x Ø 2.75 0128500M
5.2 Stop screw 4669000M
5.3 Set of screws 46670000
5.4 Laminar flow straightener 13960000
6 Non-return valve 48277000
6.1 O-ring ø 17 x ø 2 0305500M
7 Dirt strainer 0726400M
8 S-union 12693000
9 Switching power supply 42470000
10 Extension cable 36221000
11 GROHE TurboStat cartridge 1/2" 47175000*
12 Temperature scale handle 47811000*
13 Remote control 36407001*
14 Extension cable 36222000*
15 Socket spanner 19332000*
16 Special spanner 19377000*
17 Cast swivel spout 13378000*
18 Cast swivel spout 13380000*
