Rapid SL 3-in-1 set for WC

Product Number
39187000
EAN
4005176327926
Colour
chrome
Rating

Product Description

  • with flushing cistern GD 2, 6 - 9 l
  • 1.13 m installation height
  • for on-the-wall installations or studded walls
  • powder coated steel frame, self-supporting
  • for dry-cladding, completely pre-assembled
  • with fixed connections
  • quick adjustment, lockable
  • fixing material
  • TÜV approved
  • 2 WC fixing bolts
  • fixing device for ceramic
  • WC ceramics with small bearing area (less than 205 mm)
    require additional accessory 38 779 000
  • distance of fixing bolts 180/230 mm
  • outlet bend Ø 90 mm
  • depth adjustable
  • reducer Ø 90/110 mm
  • inlet and outlet connecting set
  • flushing cistern GD 2, 6 - 9 l
  • adjustment ex factory 6 l and 3 l
  • water supply from left/right or back
  • pneumatic discharge valve offering 3 modes of
    operation: dual flush or start/stop or single flush
  • low noise (group I acc. to German Noise Specification)
  • insulated against condensation
  • angle valve ½"
  • water inlet with pipe fixation
  • no tools required for the installation of the inspection shaft
    including protection during construction phase
  • for vertical or horizontal use
  • accessories for on-the-wall installation
  • with GROHE Fresh retrofit set
  • including flush plate Nova Cosmopolitan
  • vertical and horizontal installation
  • 156 x 197 mm
  • chrome
  • made of ABS
  • GROHE StarLight chrome finish
  • including Scandinavian adapter 38 338 000

Technical Information

CAD Data

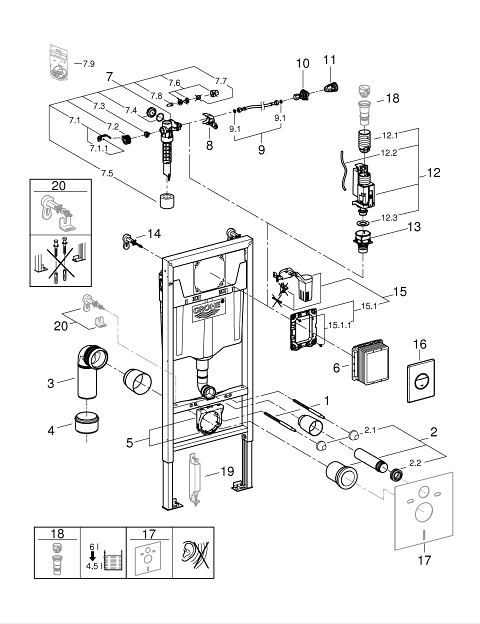

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
3 PP-outlet bend Ø 90 mm 42327000
4 Reducer 42242000
5 Support for outlet bend 42243000
6 Inspection shaft 66791000
7 Filling valve 37095000
8 Support device 42246000
9 Tube 42397000
10 Angle valve 42396000
11 Connecting box 38338000
12 Dual Flush discharge valve AV1 42320000
13 Valve seat for GD2 42315000
14 Wall brackets 3855800M
15 Retrofit set 38796000
16 Top plate with push button 42375000
17 Set for noise protection 37131000*
18 4.5 l adapter for GD2 42333000*
19 Accessory 38779000*
20 Xtra wall brackets, flexible placing 38733000*
