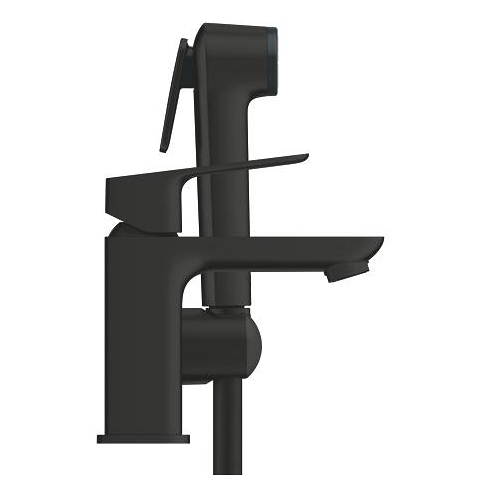

GROHE Cubeo Single-lever basin mixer 1/2″ S-Size

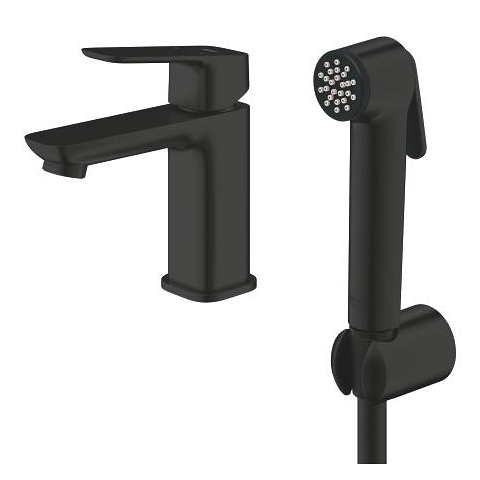

This elegant bundle includes an environmentally friendly GROHE Cubeo mixer tap and a practical trigger spray shower set – all in chic matt black.
This basin tap in S-size from the GROHE Cubeo collection impresses with its rounded edges and appealing, minimalist design, which is made even more attractive by state-of-the-art technology and excellent workmanship. In addition to the mixer tap, the scope of delivery includes a trigger spray hand shower with diverter, hose (1500 mm) and wall holder. The compact design of the mixer tap measures 152mm in height. The extremely smooth-running and durable GROHE SilkMove ceramic cartridge ensures easy and precise control of the water volume and water temperature via the tactile lever made of robust metal. Thanks to GROHE EcoJoy technology, the tap makes an important contribution to sustainability by significantly reducing water consumption: The maximum flow rate is only 5 l/min at 3 bar and still ensures optimum performance. Installation is speedy and hasse-free – with the GROHE FastFixation system. GROHE Cubeo – designed to match, built to last!
Key Features
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- adjustable flow rate limiter
- with temperature limiter
- maximum flow rate (at 3 bar): 5 l/min
- GROHE FastFixation installation system
- flexible connection hoses
- single hole installation
- smooth body
- with shower set consisting of
- hand shower with integrated diverter
- wall shower holder
- shower hose
Technical Product Information

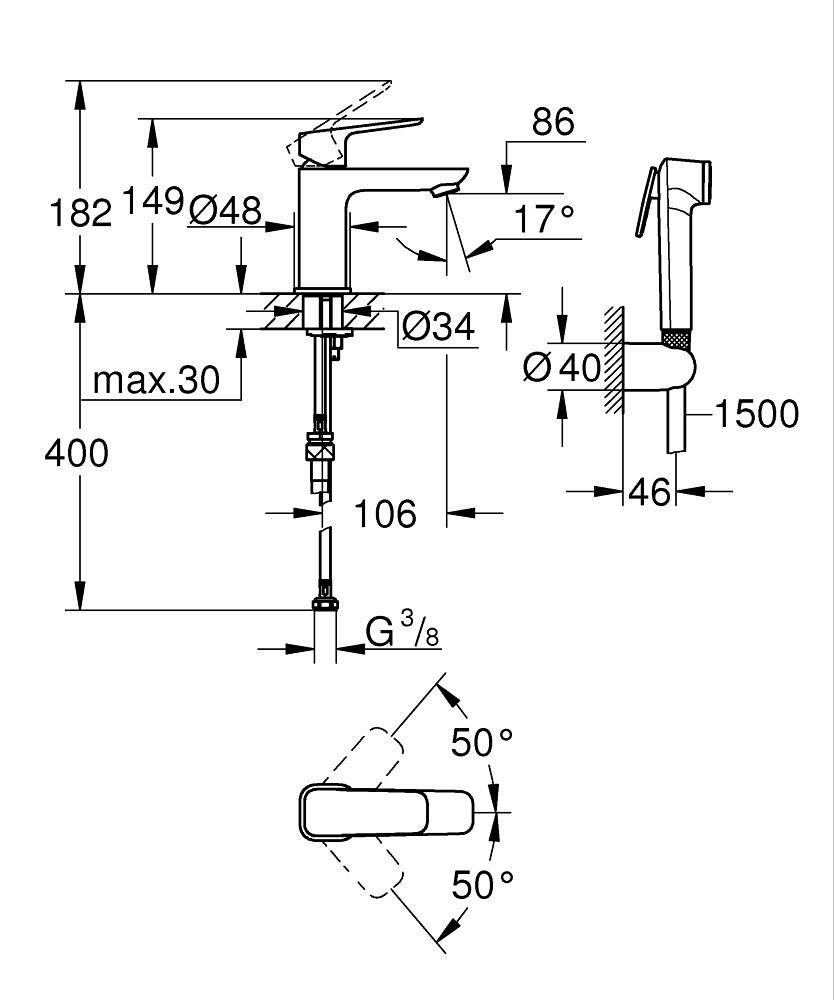

CAD Data

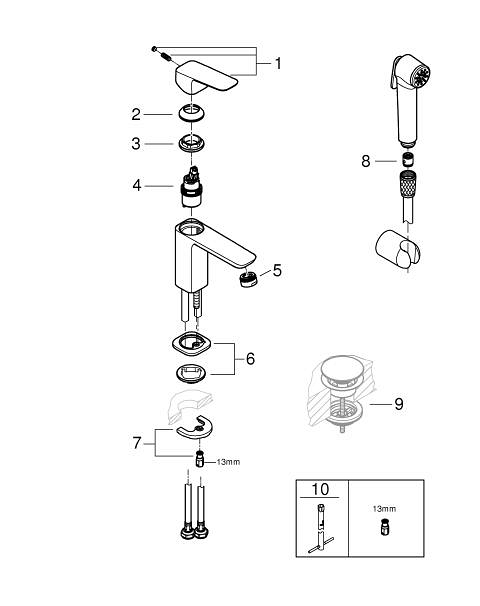

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Cubeo Lever | 1060132430 |
| 2 | Cap | 465812430 |
| 3 | Fitting ring | 07419000 |
| 4 | Cartridge | 48518000 |
| 5 | Mousseur | 481592430 |
| 6 | Cubeo Rosette | 1060152430 |
| 7 | Shank mounting kit | 46249000 |
| 8 | Non-return valve | 08565000 |
| 9 | Waste set with push-open plug | 658072430* |
| 10 | Mounting wrench | 19017000* |
