Rapid SL 3-in-1 set for WC, 0.82 m installation height
Key Features
- consisting of:
- Rapid SL element for WC (38 526 000)
- Skate Cosmopolitan flush plate, chrome (38 732 000)
- wall brackets (38 558 00M)
- including Scandinavian adapter 38 338 000

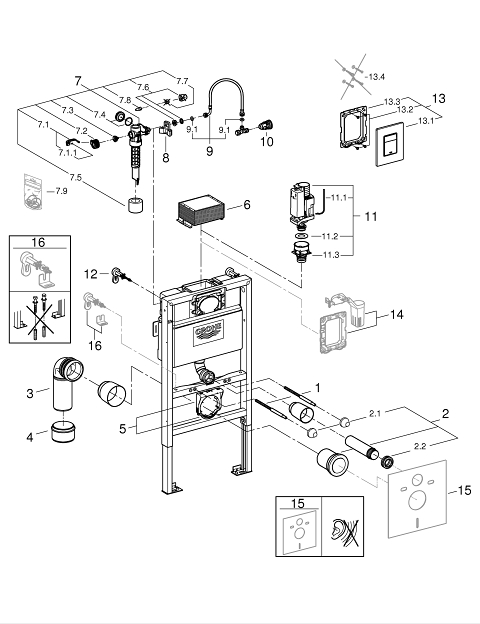

Technical Product Information
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | PP-outlet bend Ø 90 mm | 42327000 |
4 | Transition piece 90/110 to Rapid SL | 42242000 |
5 | Support for outlet bend | 42243000 |
6 | Inspection shaft for flushing cistern | 42326000 |
7 | Filling valve | 37095000 |
7.1 | Lever | 43734000 |
7.1.1 | Seal | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve float, 5 pcs. | 4379100M |
7.6 | Set of seals | 43722000* |
8 | Support device | 42195000 |
9 | Overflow Sleeve | 43325000 |
9.1 | Sealing washer | 0319100M |
10 | Water supply pipe connector | 38338000 |
11 | Discharge valve AV1 complete | 42314000 |
11.1 | Pneumatic hose | 42319000 |
11.2 | Seal | 42310000 |
11.3 | Valve seat for GD2 | 42315000 |
12 | Wall brackets | 3855800M |
13 | Flush plate | 38732000 |
13.1 | Top plate with push button | 42371000 |
13.2 | Screw | 6636200M |
13.3 | Mounting frame | 43207000 |
13.4 | Fixing set | 4308500M* |
14 | Retrofit set | 38796000* |
15 | Set for noise protection | 37131000* |
16 | Xtra wall brackets, flexible placing | 38733000* |
