Rapid SL Element for WC, 1.00 m installation height
Key Features
- with flushing cistern 6 - 9 l
- for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- for dry-cladding, completely pre-assembled
- with fixed connections
- quick adjustment, lockable
- fixing material
- TÜV approved
- 2 WC fixing bolts
- fixing device for ceramic
- WC ceramics with small bearing area (less than 205 mm) require additional accessory 38 779 000
- distance of fixing bolts 180/230 mm
- outlet bend Ø 90 mm
- inlet and outlet connecting set
- depth adjustable
- reducer Ø 90/110 mm
- flushing cistern 6 - 9 l containing the following features:
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- front or top actuation
- water supply from left/right or back
- low noise (group I acc. to German Noise Specification)
- angle valve ½"
- insulated against condensation
- water inlet with pipe fixation
- shortable inspection shaft incl. protection during construction phase
- including wall brackets 38 558 00M for on-the-wall installation
- for mounting of small flush plates please order revision shaft 40 950 000 (sold separately)
- including Scandinavian adapter 38 338 000

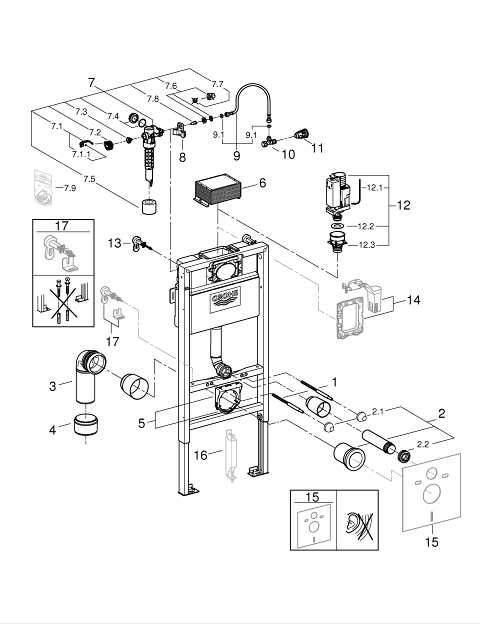

Technical Product Information
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | PP-outlet bend Ø 90 mm | 42327000 |
4 | Transition piece 90/110 to Rapid SL | 42242000 |
5 | Support for outlet bend | 42243000 |
6 | Inspection shaft for flushing cistern | 42326000 |
7 | Filling valve | 37095000 |
7.1 | Lever | 43734000 |
7.1.1 | Seal | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve float, 5 pcs. | 4379100M |
7.6 | Set of seals | 43722000* |
8 | Support device | 42195000 |
9 | Connecting hose | 42397000 |
9.1 | Sealing washer | 0319100M |
10 | Angle valve | 42396000 |
11 | Water supply pipe connector | 38338000 |
12 | Discharge valve AV1 complete | 42314000 |
12.1 | Pneumatic hose | 42319000 |
12.2 | Seal | 42310000 |
12.3 | Valve seat for GD2 | 42315000 |
13 | Wall brackets | 3855800M |
14 | Retrofit set | 38796000* |
15 | Set for noise protection | 37131000* |
16 | Accessory | 38779000* |
17 | Xtra wall brackets, flexible placing | 38733000* |
