Rapid SL 3-in-1 set for WC, 1.13 m installation height

Product Number
39189000
EAN
4005176327940
Colour
chrome
Rating

Product Description

  • with flushing cistern 6 - 9 l
  • consisting of:
  • Rapid SL element for WC (38 528 001)
  • Nova Cosmopolitan flush plate, chrome (38 765 000)
  • Rapid SL wall brackets (38 558 00M)

Technical Information

CAD Data

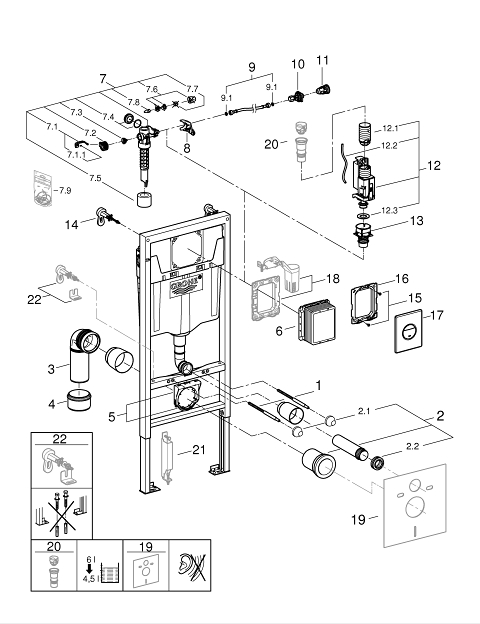

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 Reducer 42242000
5 Support for outlet bend 42243000
6 Inspection shaft 66791000
7 Filling valve 37095000
7.1 Lever 43734000
7.1.1 Seal 4377000M
7.2 Valve head 43536000
7.3 Membrane 4375800M
7.4 Screw cap 43735000
7.5 Valve float, 5 pcs. 4379100M
7.6 Dummy plug and escutcheon cap 37125000
7.7 Compression nut 43258000
7.8 Throttle 42356000
7.9 Set of seals 43722000*
8 Support device 42246000
9 Connecting hose 42397000
9.1 Sealing washer 0319100M
10 Angle valve 42396000
11 Water supply pipe connector 38338000
12 Dual Flush discharge valve AV1 42320000
12.1 Extension for overflow pipe 42313000
12.2 Pneumatic hose 42319000
12.3 Seal 42310000
13 Valve seat for GD2 42315000
14 Wall brackets 3855800M
15 Screw 6636200M
16 Mounting frame 43207000
17 Top plate with push button 42375000
18 Retrofit set 38796000*
19 Set for noise protection 37131000*
20 4.5 l adapter for GD2 42333000*
21 Accessory 38779000*
22 Xtra wall brackets, flexible placing 38733000*
