Rapid SL 3-in-1 set for WC, 0.82 m installation height
Key Features
- consisting of:
- Rapid SL element for WC (38 526 000)
- wall brackets (38 558 00M)
- including Scandinavian adapter 38 338 000
Technical Product Information

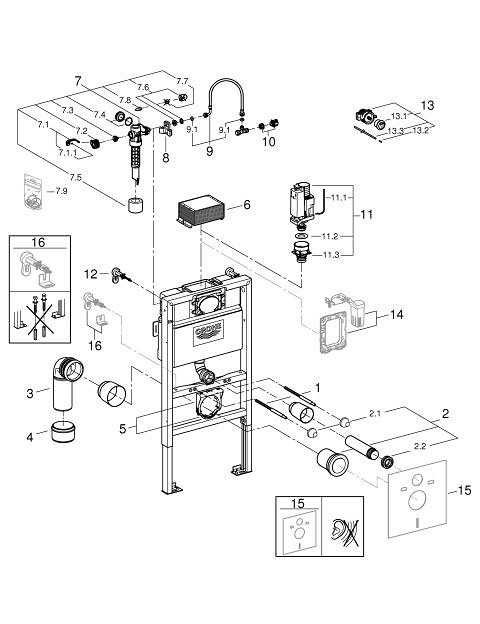

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | Transition piece 90/110 to Rapid SL | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Inspection shaft for flushing cistern | 42326000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Seal | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Set of seals | 43722000* |
| 8 | Support device | 42195000 |
| 9 | Overflow Sleeve | 43325000 |
| 9.1 | Sealing washer | 0319100M |
| 10 | Water supply pipe connector | 38338000 |
| 11 | Discharge valve AV1 complete | 42314000 |
| 11.1 | Pneumatic hose | 42319000 |
| 11.2 | Seal | 42310000 |
| 11.3 | Valve seat for GD2 | 42315000 |
| 12 | Wall brackets | 3855800M |
| 13 | Pneumatic push button actuation | 38771000 |
| 13.1 | Push button and escutcheon | 42311PI0 |
| 13.2 | Nipple | 4227100M |
| 13.3 | Tubes | 42775000 |
| 14 | Retrofit set | 38796000* |
| 15 | Set for noise protection | 37131000* |
| 16 | Xtra wall brackets, flexible placing | 38733000* |
