discontinued
Rapid SL for WC

Rapid SL for WC

Product Number
38620001
EAN
4005176863622
Colour
Download specification

Key Features

  • with flushing cistern GD 2, 6 - 9 l
  • 1.13 m installation height
  • for free-standing installation, for on-the-wall installations or studded walls
  • powder coated steel frame, self-supporting
  • for dry-cladding, completely pre-assembled
  • with fixed connections
  • lockable
  • fixing material
  • 2 WC fixing bolts
  • fixing device for ceramic
  • distance of fixing bolts 180/230 mm
  • outlet bend Ø 80 mm
  • depth adjustable
  • reducer Ø 80/100 mm
  • inlet and outlet connecting set
  • flushing cistern GD 2, 6 - 9 l
  • adjustment ex factory 6 l and 3 l
  • pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
  • water supply from left/right or back
  • low noise (group I acc. to German Noise Specification)
  • insulated against condensation
  • angle valve 1/2"
  • water inlet with pipe fixation
  • accessories for on-the-wall installation

Technical Product Information

CAD Data

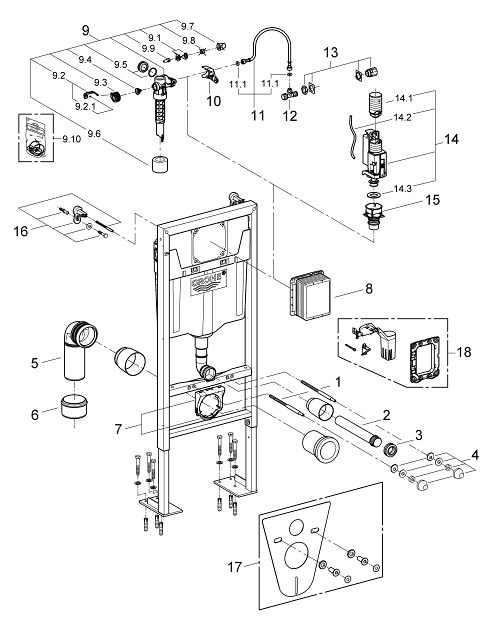

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Threaded bolt 4276400M
2 Wall union 43352000
3 Connector 37119000
4 Basin fastening 43511SH0
5 PP-outlet bend Ø 90 mm 42327000
6 Transition piece 90/110 to Rapid SL 42242000
7 Support for outlet bend 42243000
8 Inspection shaft 66791000
9 Filling valve 37095000
9.1 Lever 43734000
9.1.1 Seal 4377000M
9.2 Valve head 43536000
9.3 Membrane 4375800M
9.4 Screw cap 43735000
9.5 Valve float, 5 pcs. 4379100M
9.6 Set of seals 43722000*
10 Support device 42246000
11 Connecting hose 42233000
11.1 Sealing washer 0319100M
12 Angle valve 43821000
13 Water supply pipe connector 38338000
14 Dual Flush discharge valve AV1 42320000
14.1 Extension for overflow pipe 42313000
14.2 Pneumatic hose 42319000
14.3 Seal 42310000
15 Valve seat for GD2 42315000
16 Wall brackets 3855800M
17 Set for noise protection 37131000*
18 Retrofit set 38796000*
